12V 16A LCD Day Programmable Timer Time Relay Switch 24 Hour 7 Mini DC
12V 16A LCD Day Programmable Timer Time Relay Switch 24 Hour 7 Mini DC
Regular price
$11.99 AUD
Sale price
$11.99 AUD
Regular price
$0.00 AUD
Tax included.
Shipping calculated at checkout.
Available in stock
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

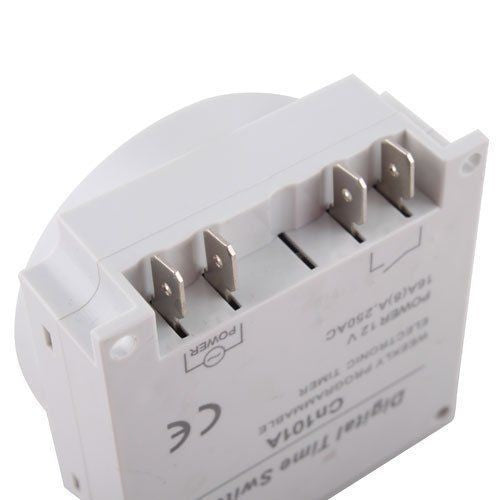

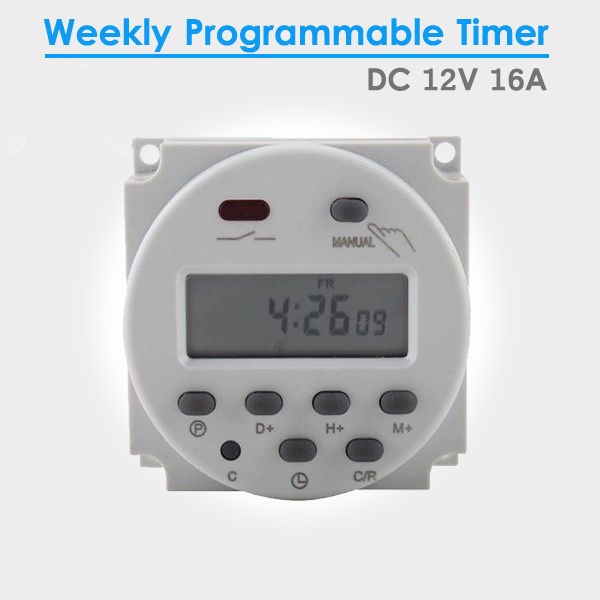

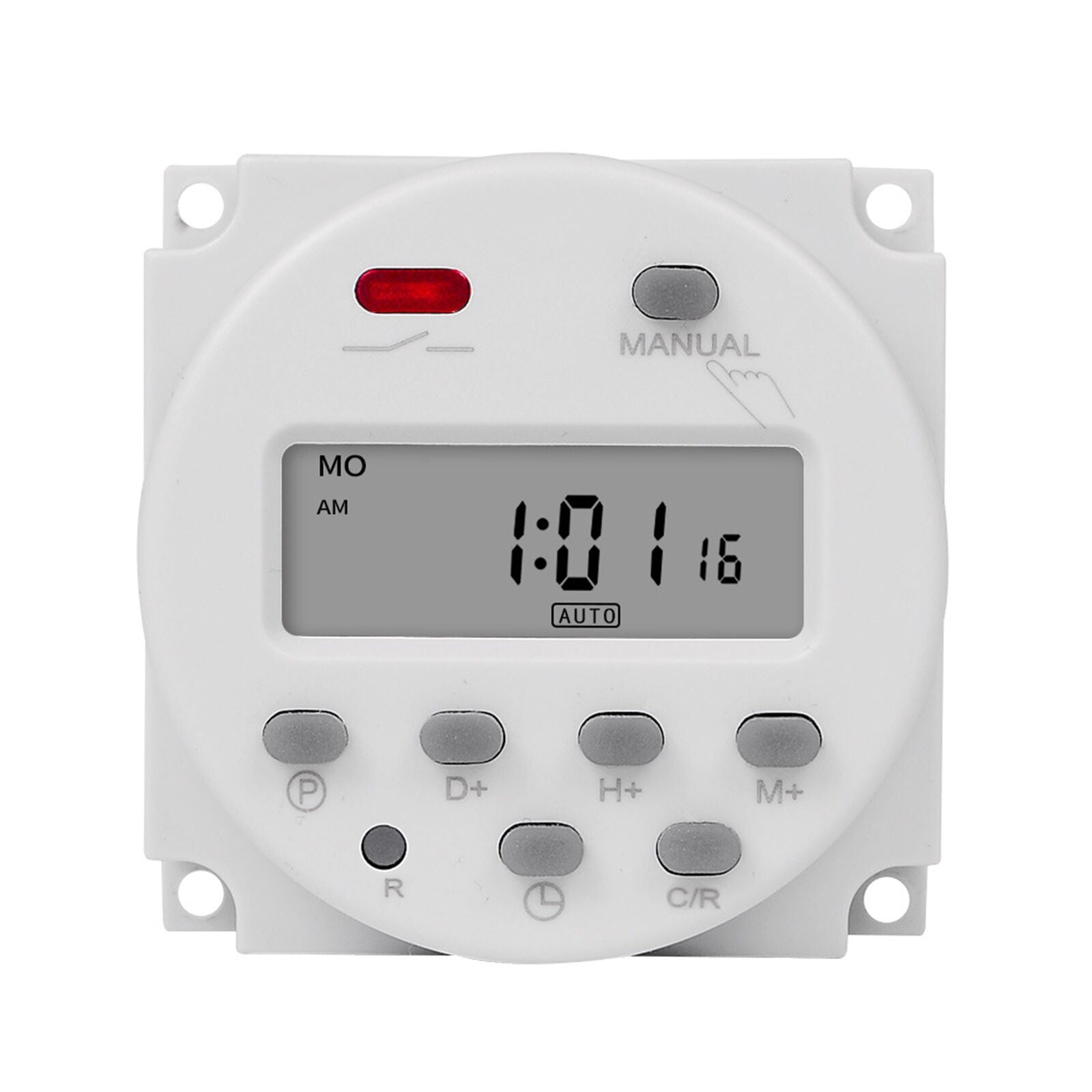

12V 16A LCD Day Programmable Timer Time Relay Switch 24 Hour 7 Mini DC
Panel mounted
advanced pre-setting one week before
digital electronic timer switch with daily programs
repeat programs with 17 on/off setting and manual over-ride
auto timer error correction +- 30 sec
Specifications:
Material: Plastic, Electronic Parts
Rated Control Voltage: 12±10% VDC
Contact Capacity: 16A 12VDC
Power Consumption: 7.5VA(max.)
Internal battery: 1.2V/40mA (rechargeable batteries)
Hysteresis: <=2 sec/day(25°C)
Display: LCD
Programmable: 16 times/week or day
Minimum Interval: 1 minute
Switching Contact: 1 changeover switch
Ambient Temperature: -10 to +40°C
Mounting Hole Diameter: 3mm / 0.12"
Overall Size (Approx.): 62 x 60 x 33mm / 2.4" x 2.36" x 1.3"(L*W*H)
Net Weight: 68g
Tips:
Before starting the program, the timer should be charged for at least 5 minutes as the inbuild battery may be flat at time of delivery;
Before setting the program, press the reset button reset to clear the memory for the new instructions;

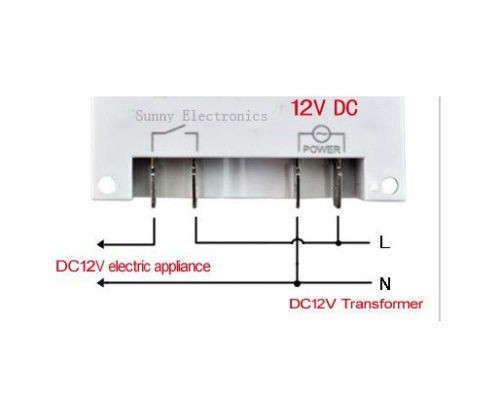

After the program is set, please insert the timer to the plug. Then connect the electric appliance to the timer;
The on and off can be set eight times each day, which can be set as follow:
First option, Sunday;
Second option: from Monday to Friday
Third option: Saturday and Sunday(weekend)
Fourth option: from Monday to Saturday(working days)
Fifth option: Monday,Wednesday,Friday
Sixth option: Tuesday,Thursday,Saturday
Seventh option: from Monday to Wednesday
Eighth option: from Wednesday to Saturday
Package Includes:
1x Programmable Timer
