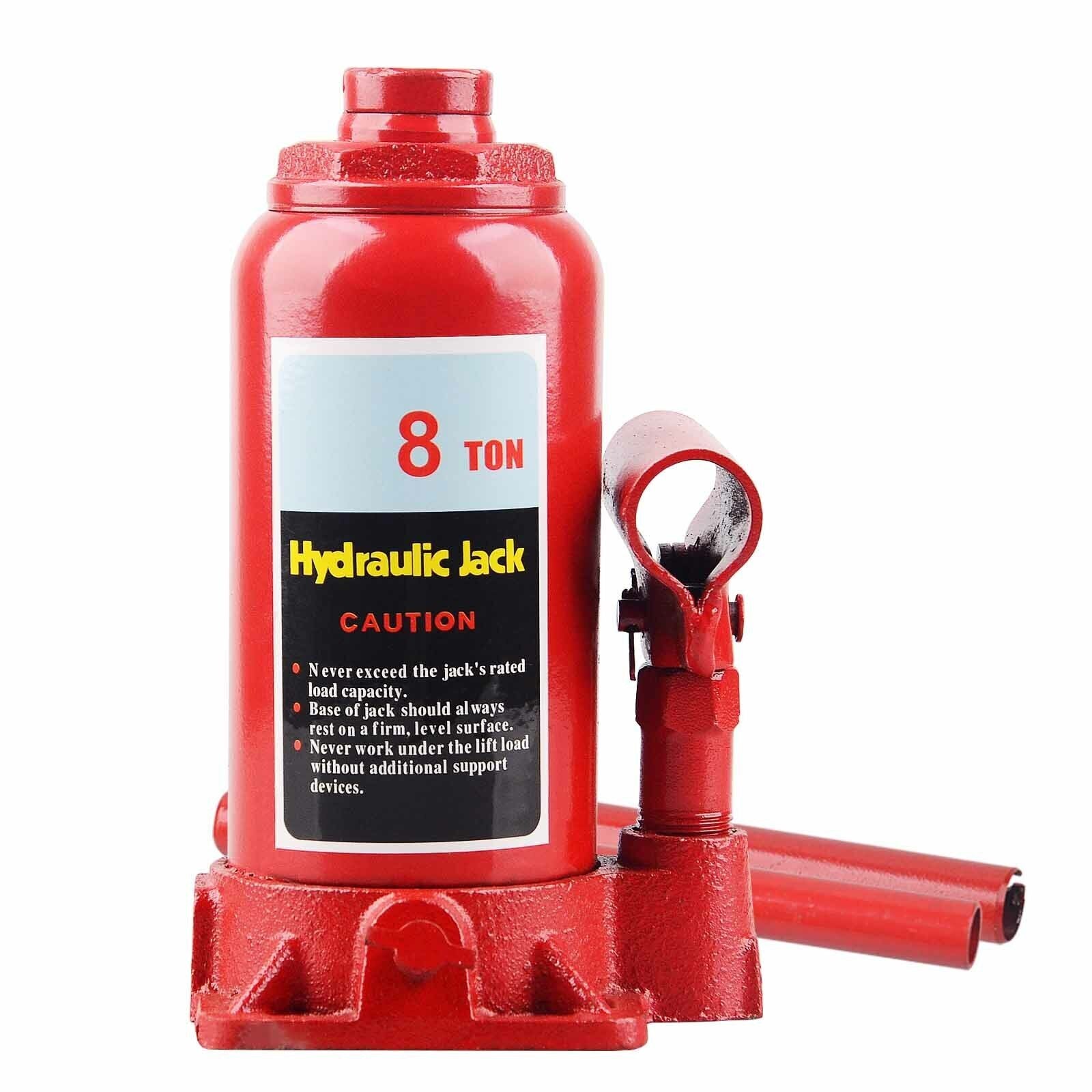

8Ton Hydraulic Bottle Jack Lift Car Lifting Tool Truck Caravan Tractors 4WD

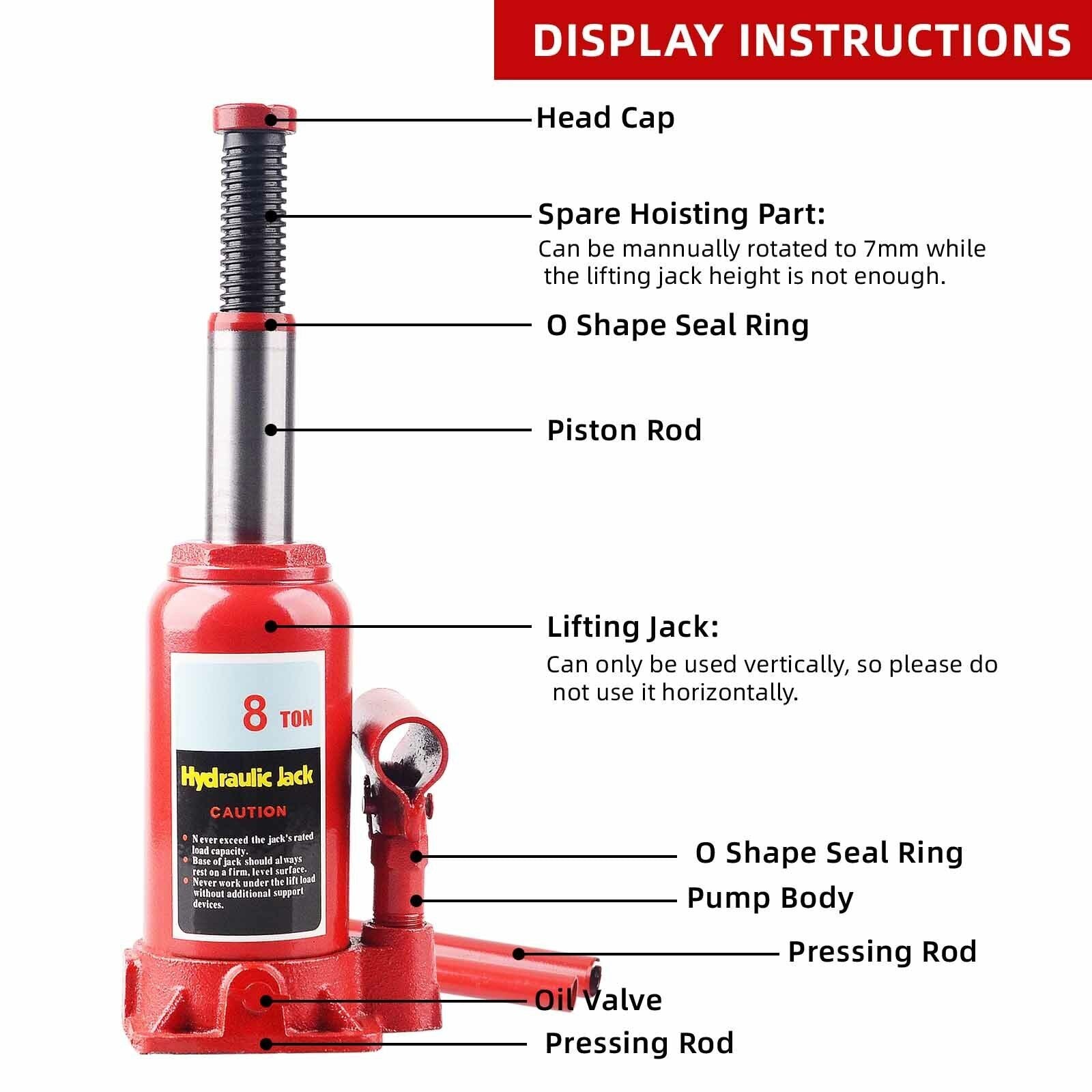

Features:
Whole body casting with thickened steel plate, durable for long time use.
Release oil return valve for auto descend; operation is simple, convenient and quick.
2 parts handle for easy storage, long handle make lifting easy and saves your labor.
Skid resistance top with cross grooves, enlarged base ensures stability and safety .

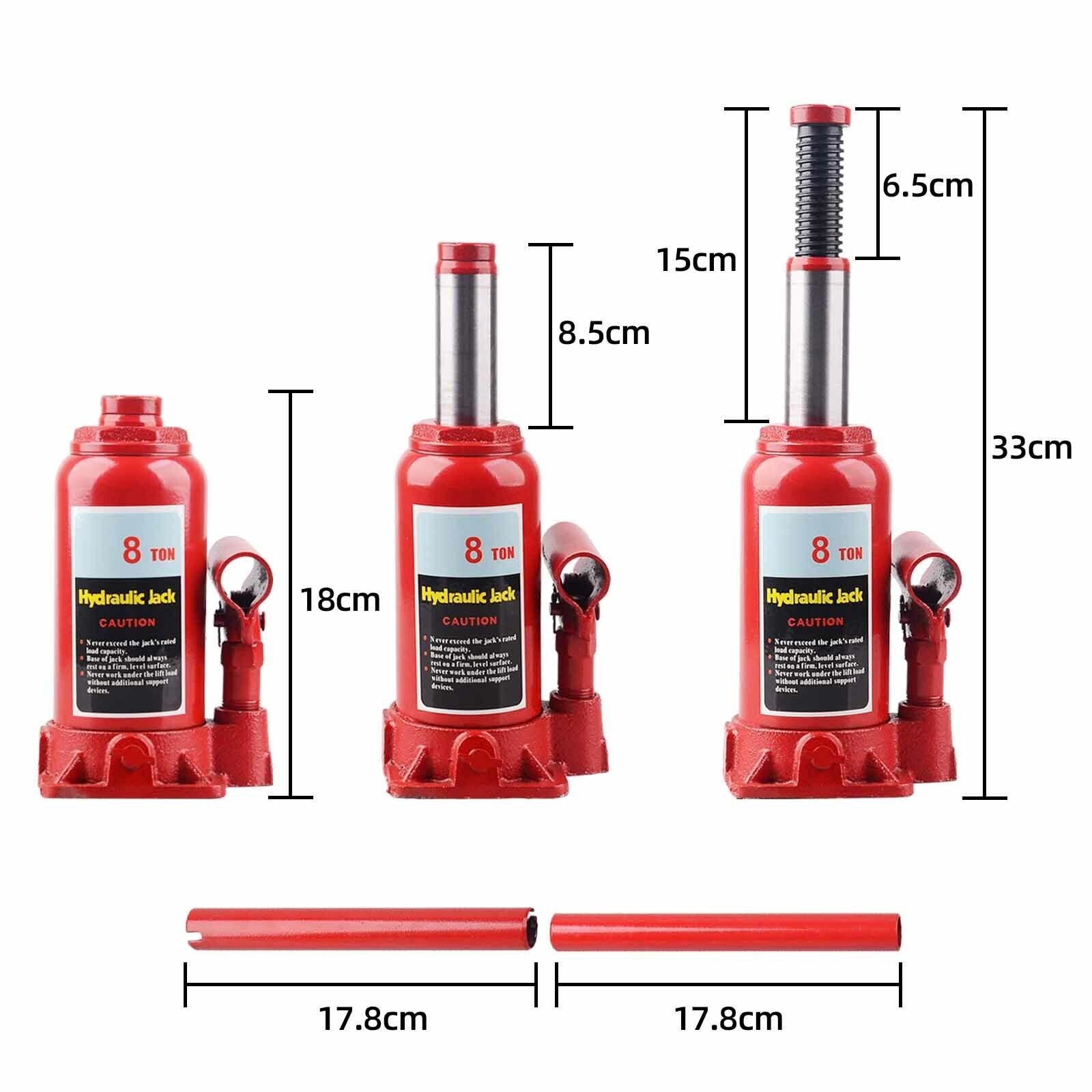

8T Specifications:
Max Lifting Capacity: 8T
Min. Height: 200mm/7.87in
Max. Height: 340mm/15.15in
Adjustable Height: 60mm/2.36in
Lifting Height: 125mm/4.92in
Weight: 3400g(approx.)
Oiling Maintenance:
1. Put jack in vertical state.
2. Lower the pump and piston, until it is completely loose.

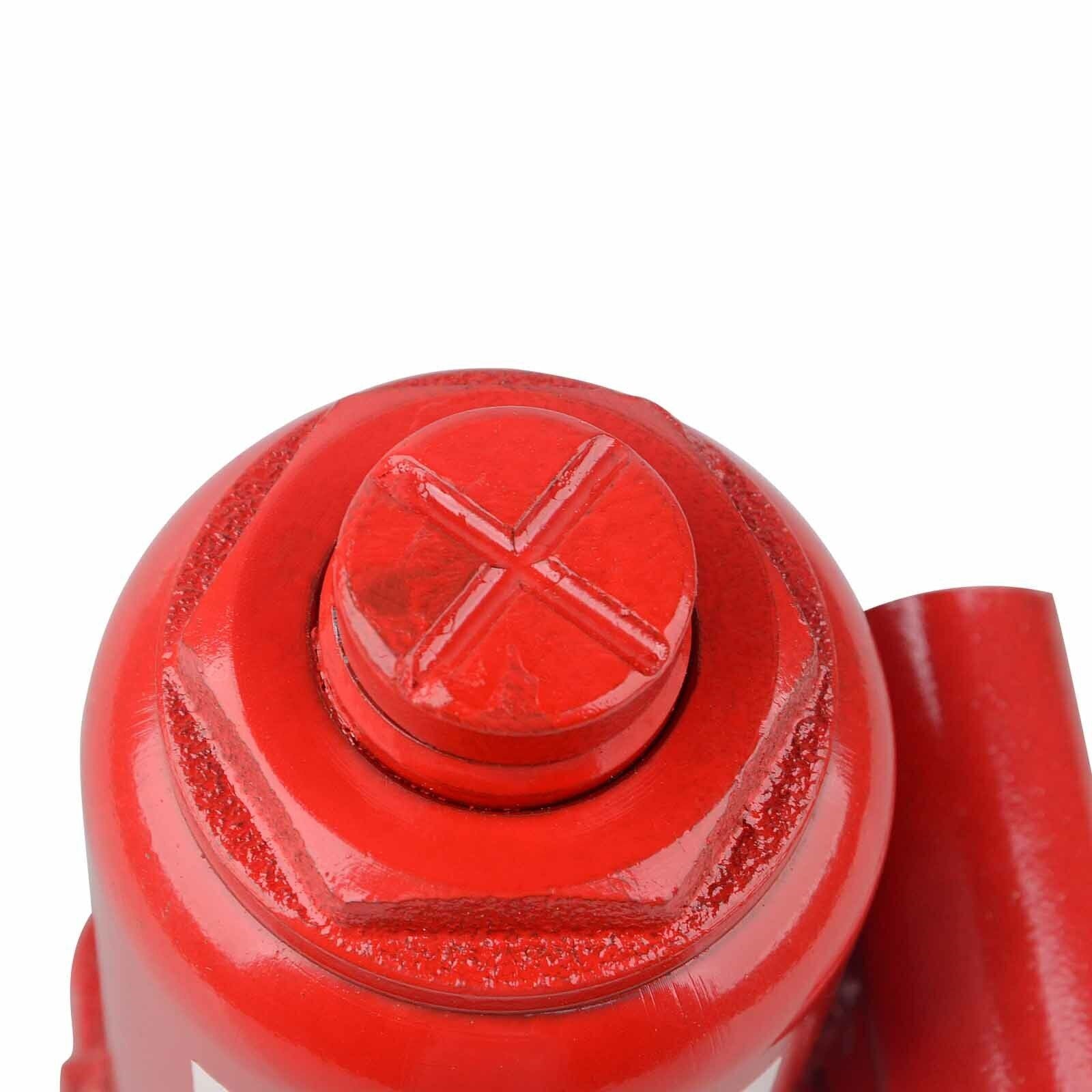

3. Remove the rubber oil plug.
4. Pour into high quality hydraulic oil.
5. Mount rubber oil plug.
Package Includes:
1 x Hydraulic Jack
Note:

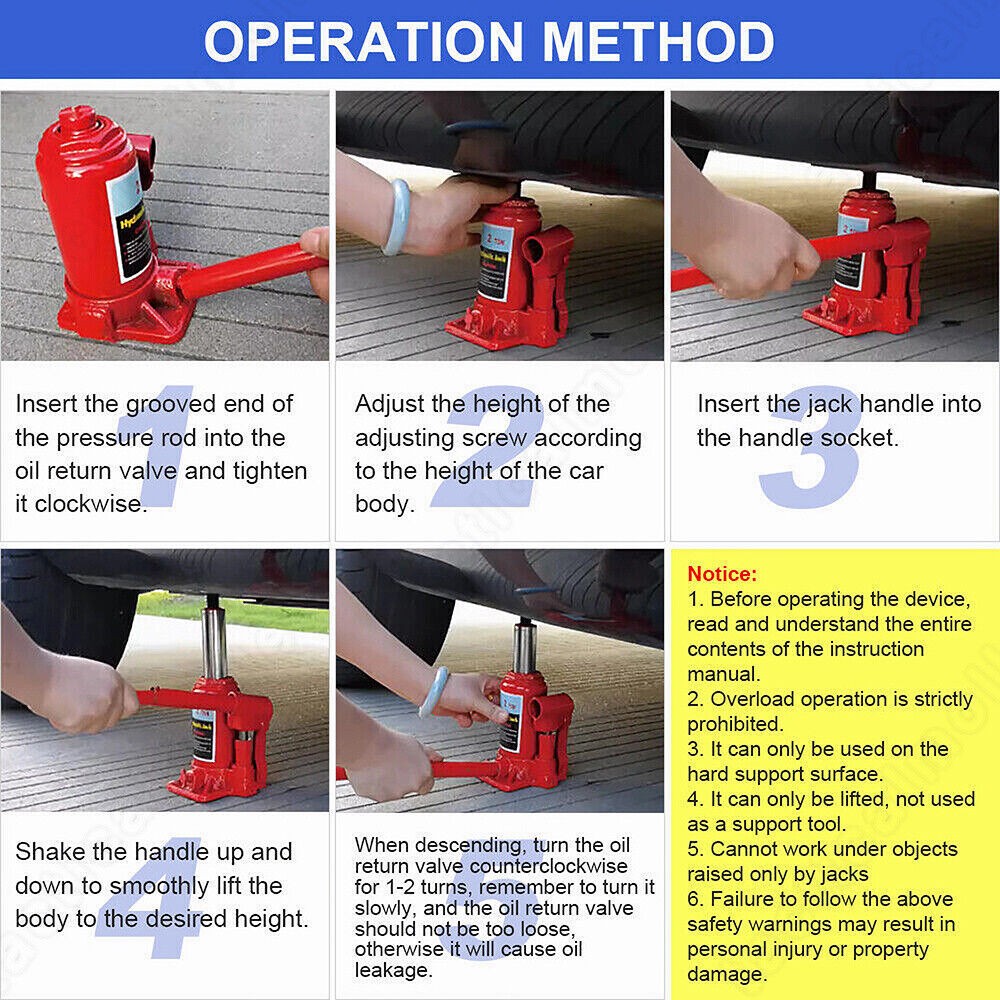

1. Before operating, estimate the weight of the load. Do not overload the jack beyong its rated load capacity.
2. Select point of action according to the gravitational center place the jack on the ground if necessary. Place a hard plank under the jack so to avoid tottering or falling during operation.
3. Insert operating handle into the socket and the ram is steadily raised by the up and down movement of the handle and the load is raised. The ram will stop rising when the required height is reached.

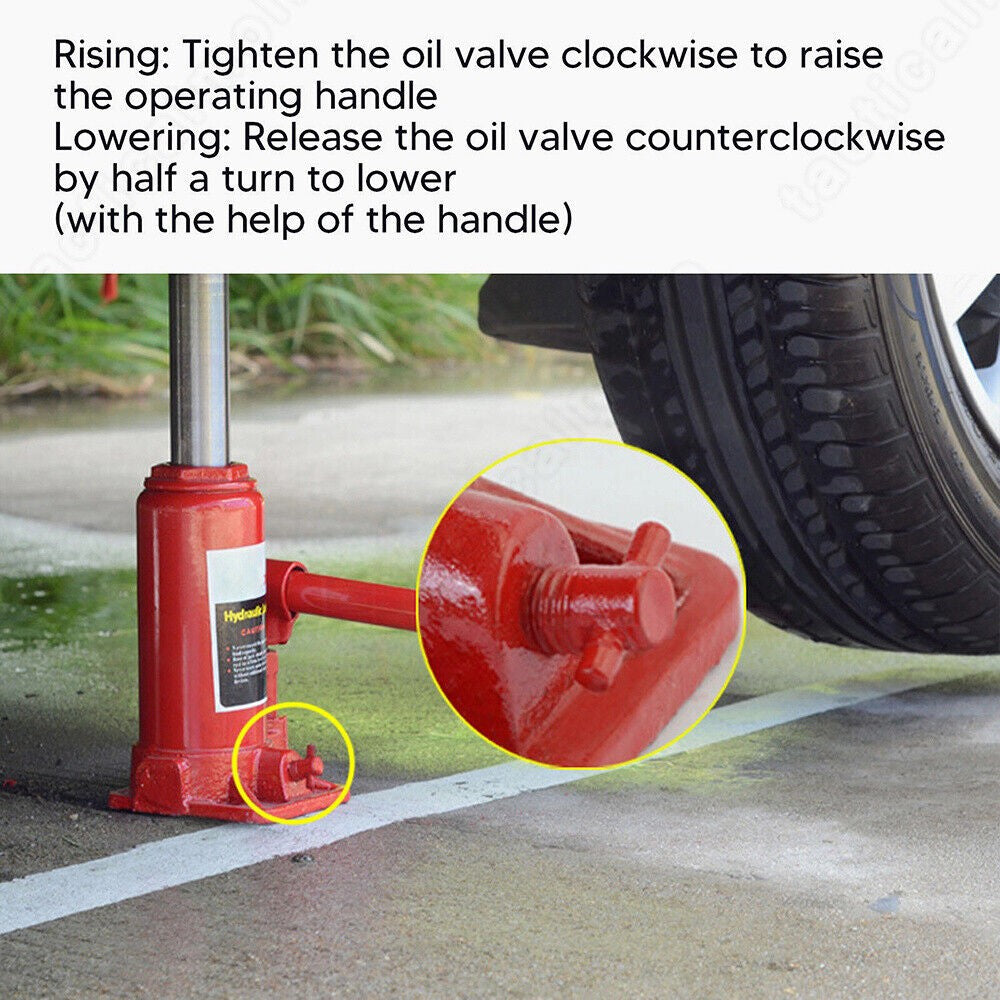

4.When you have lifted the jack to a required position,please clockwise screw the pressure valve to the rightmost to fix the spindle.
5.When you finish using the jack,please anti-clockwise screw the pressure valve to the left.
6.If you use the jack on a soft ground,we suggest that you should lay a large baseplate or a hard object under it.
