Manual Electric Wire Stripping Machine

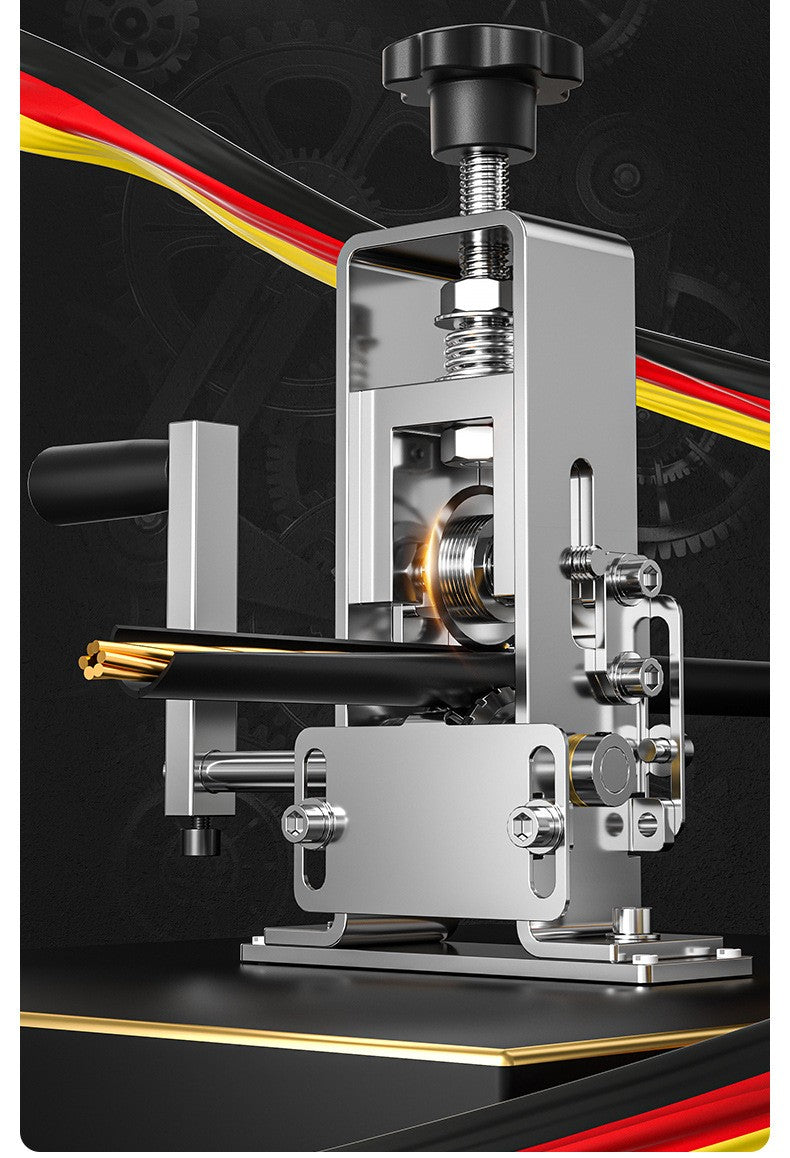

Wire Stripping Machine - Manual & Electric Drill Compatible (2-16mm Soft Cable Only)

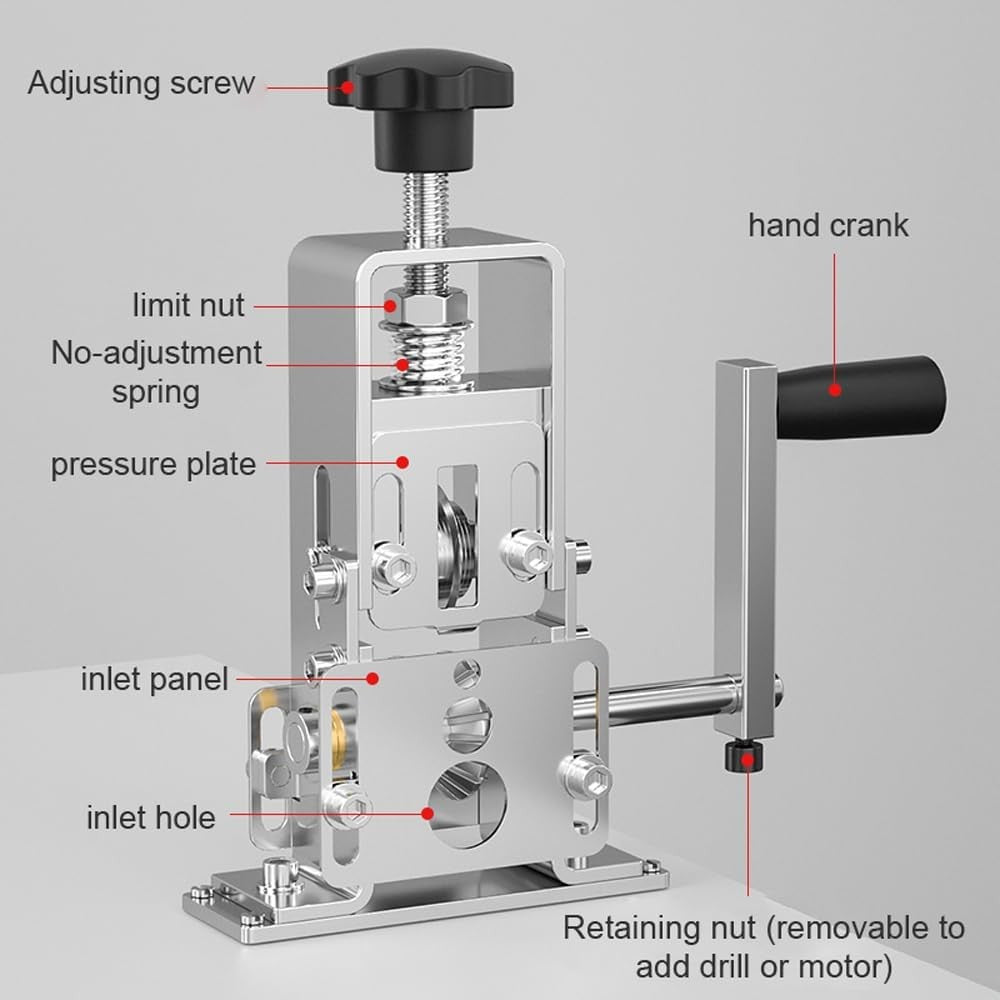

Key Features:

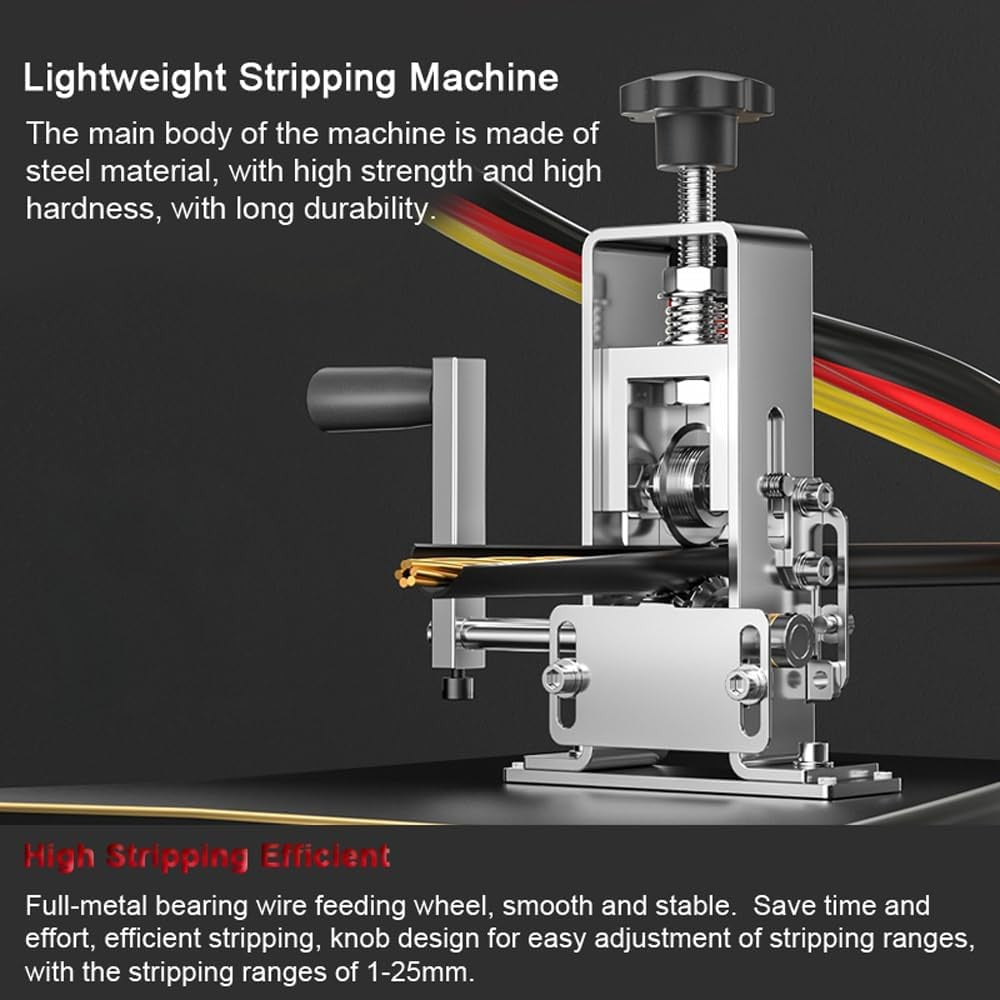

- Durable steel body - high strength, long-lasting
- Full-metal bearing feed wheel - smooth, stable, and efficient

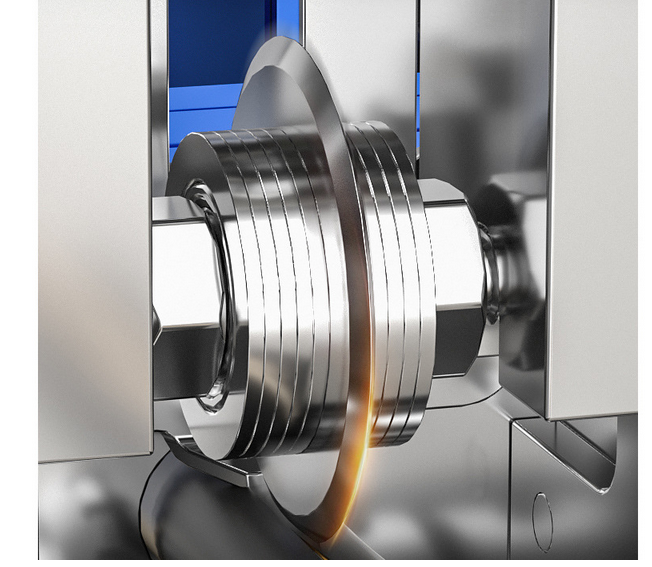

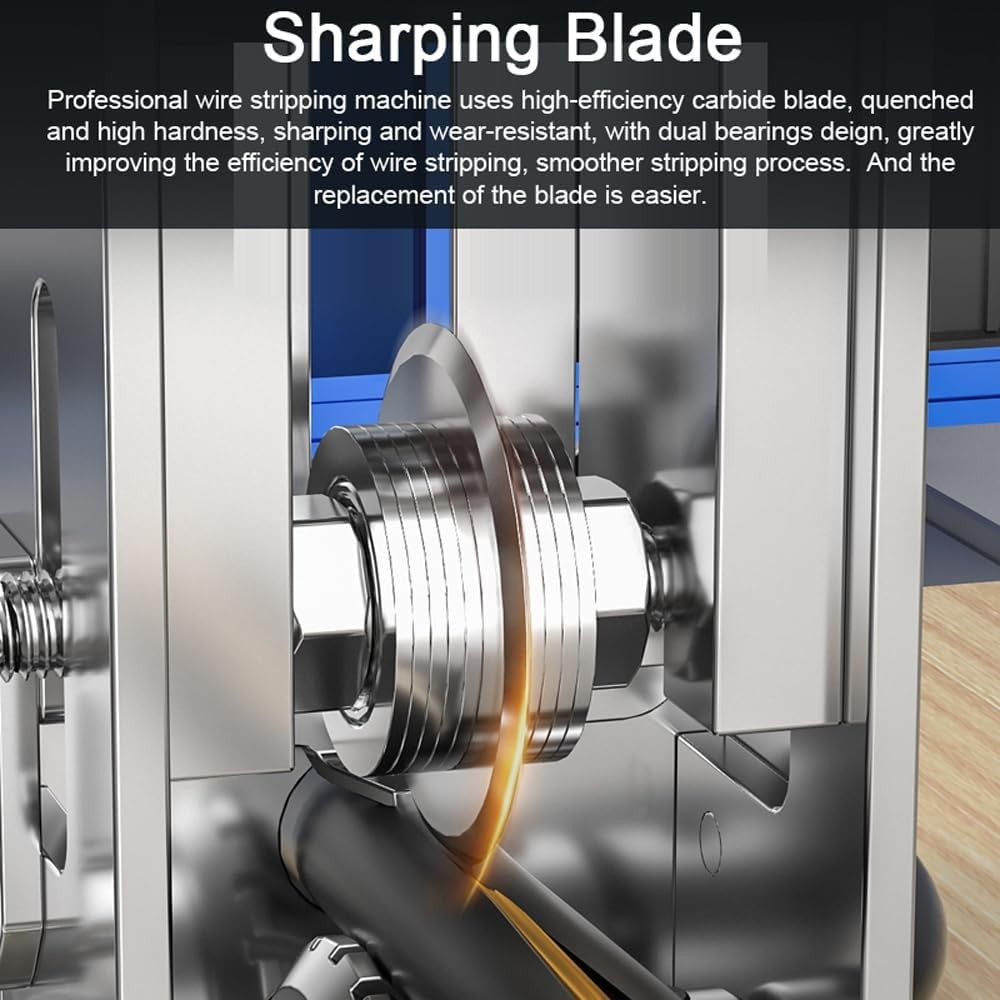

- Carbide sharp blade - hardened, wear-resistant, with dual bearings for smoother stripping

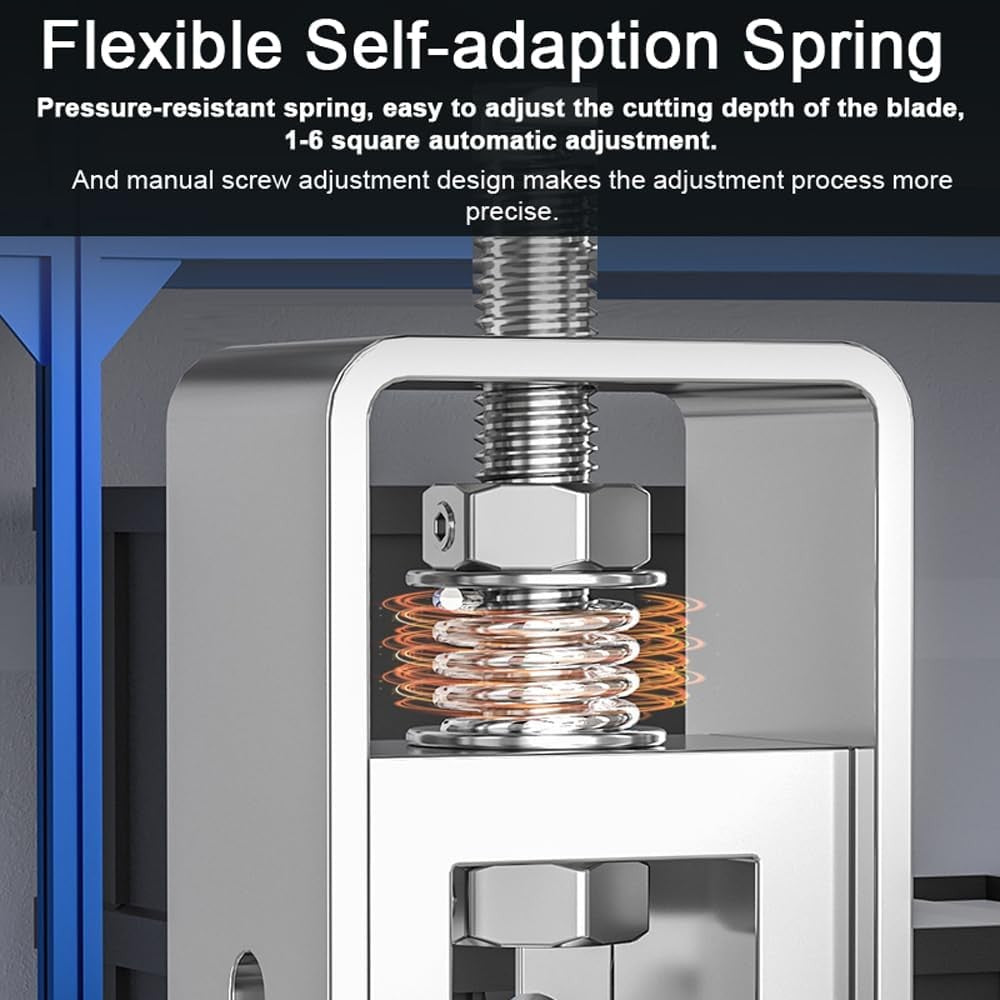

- Adjustable cutting depth - spring-loaded self-adjustment (1-6) plus manual screw fine-tuning

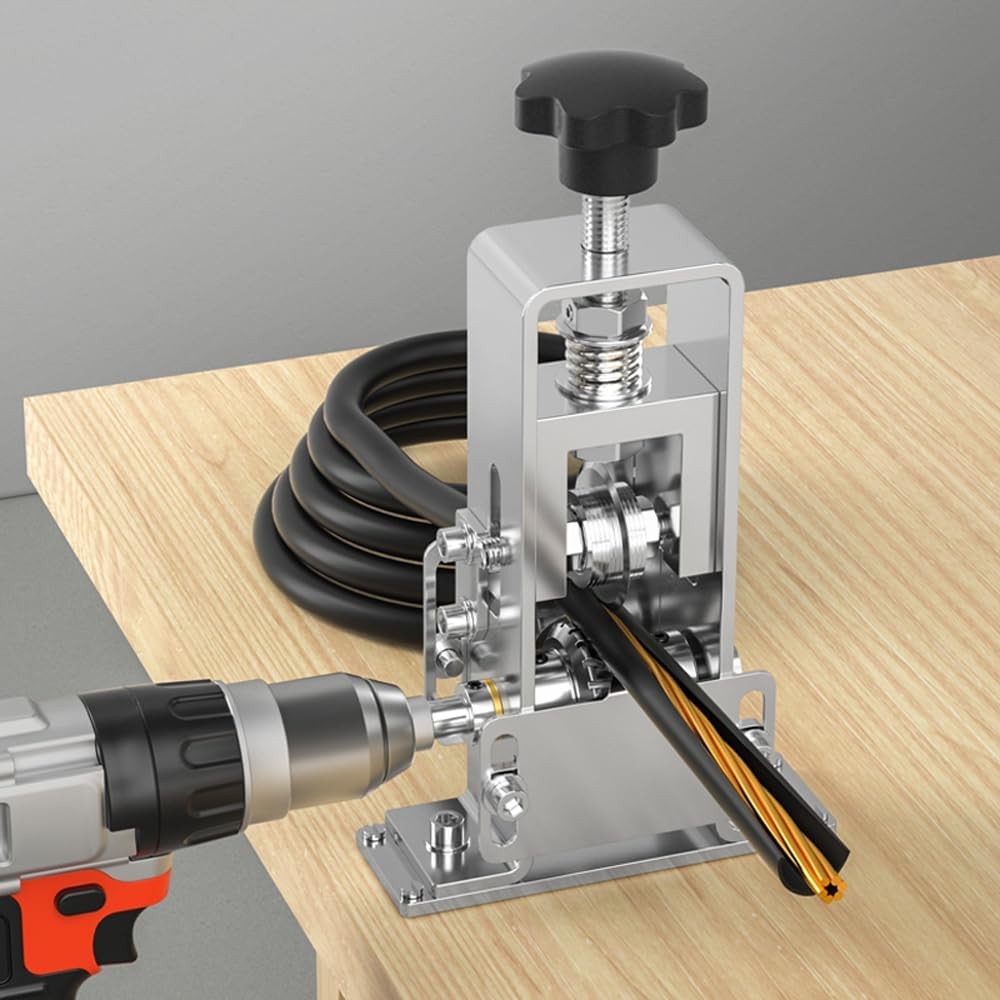

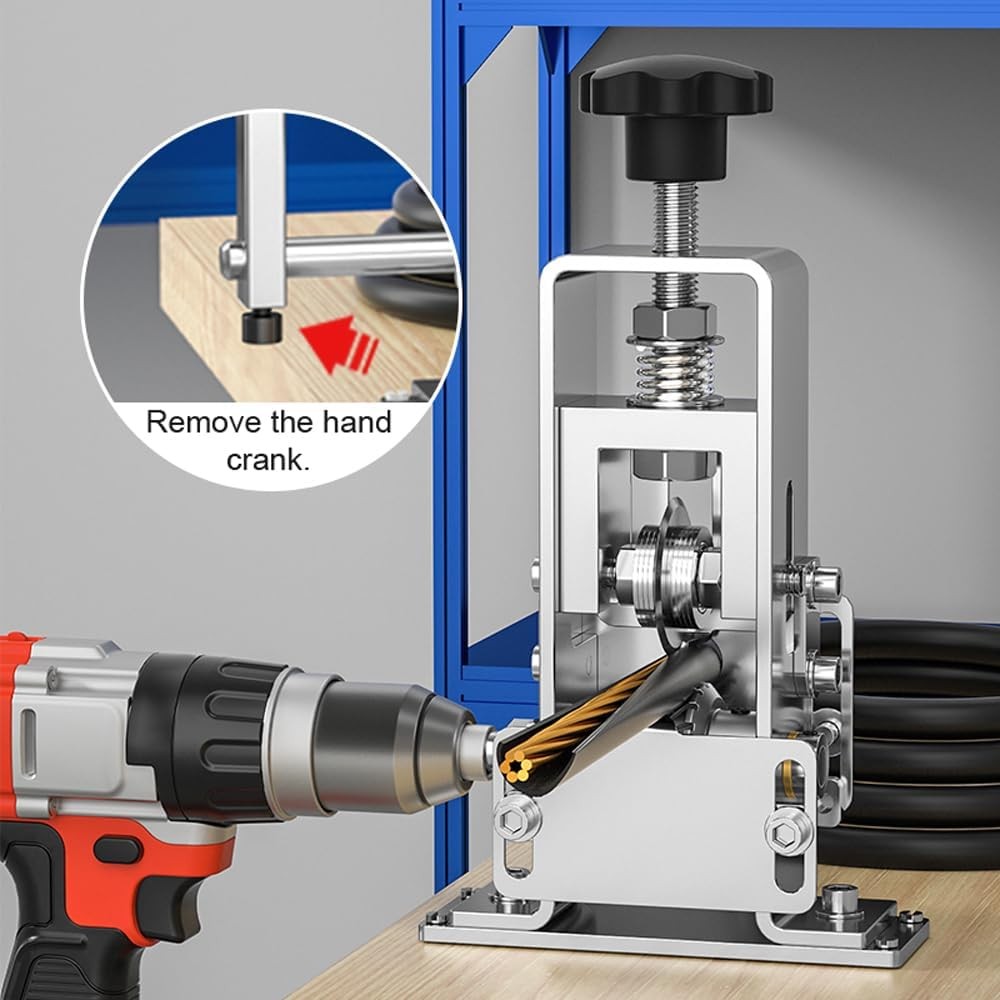

- Dual drive options - use the ergonomic hand crank, or connect to an electric drill for faster stripping
- Multi-hole feeder plate - suits different cable thicknesses within the compatible range
- Full-metal bearing feed wheel - smooth, stable, and efficient
- Carbide sharp blade - hardened, wear-resistant, with dual bearings for smoother stripping
- Adjustable cutting depth - spring-loaded self-adjustment (1-6) plus manual screw fine-tuning
- Dual drive options - use the ergonomic hand crank, or connect to an electric drill for faster stripping
- Multi-hole feeder plate - suits different cable thicknesses within the compatible range
Compatible Wire Types:
Suitable for soft-plastic sheathed wires, optical cables, multicore cables, twisted wires, aluminium wires, soft copper wires, hard copper wires, and similar flexible cables.
Diameter range: 2mm - 16mm
IMPORTANT - NOT SUITABLE FOR:
This machine is designed for soft outer sheath only.
DO NOT use on:
DO NOT use on:
- Wires with iron or steel armour / metal cladding
- Hard plastic outer sheaths
- Flat cables (ribbon-type)
- Any cable with sheath thickness over 6mm
- Hard plastic outer sheaths
- Flat cables (ribbon-type)
- Any cable with sheath thickness over 6mm
Using this machine on unsuitable wires may damage the blade, jam the gears, and void any claim.
---
STEP-BY-STEP OPERATION TUTORIAL
Please read and follow every step carefully before use:
Step 1 - Check Blade Alignment

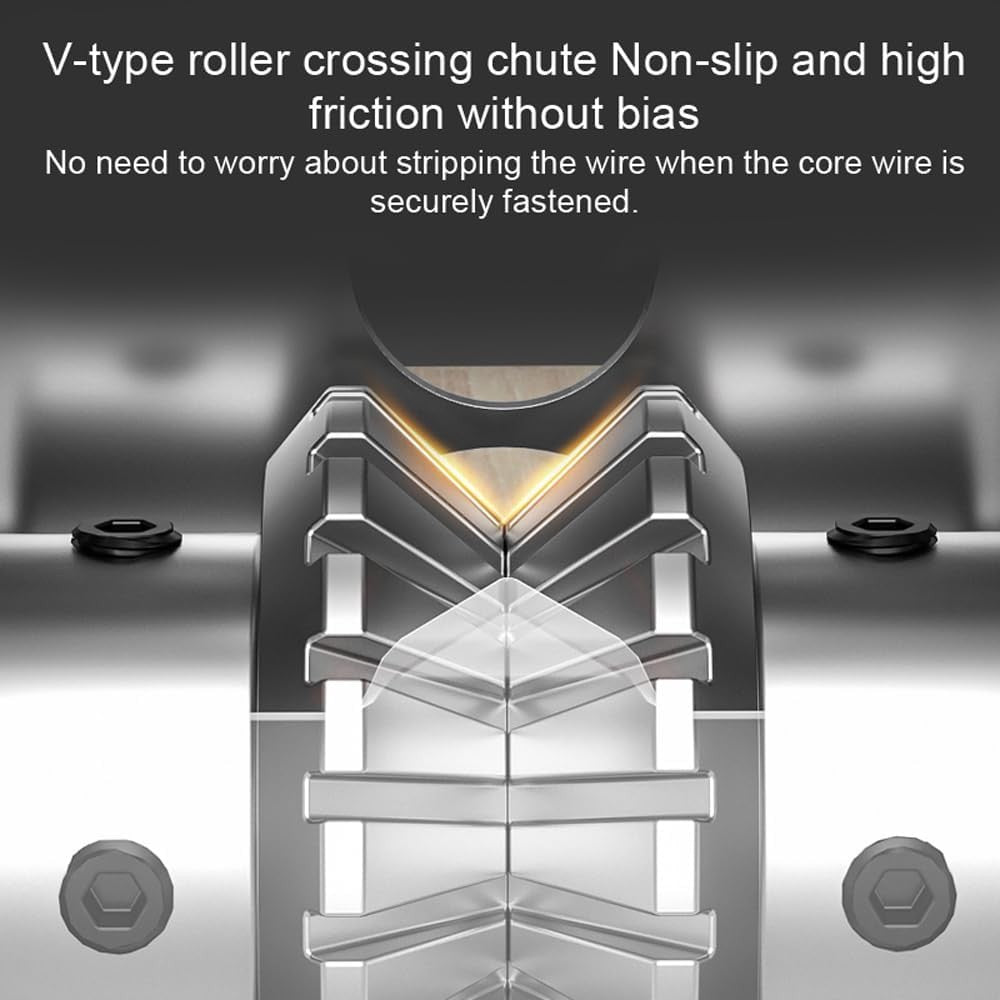

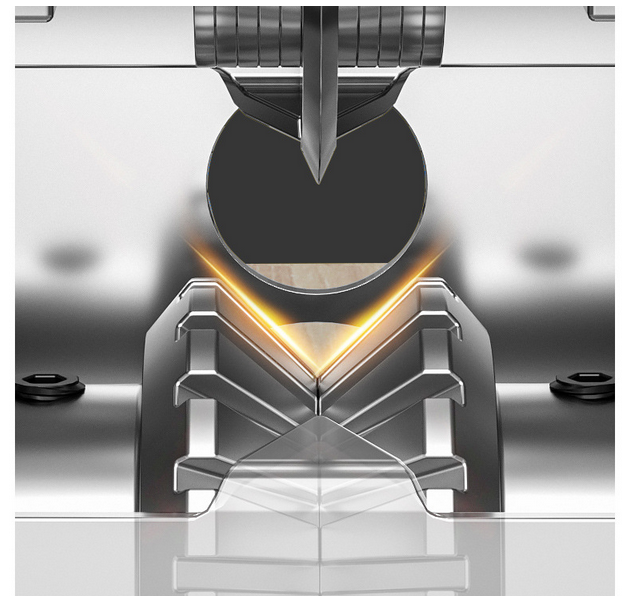

Confirm the blade is aligned with the gear V-groove.
If not, adjust the blade position until they match.
Confirm the blade is aligned with the gear V-groove.
If not, adjust the blade position until they match.
Step 2 - Feed the Wire Straight
Keep the wire completely straight as it enters the machine.
Ensure no gap between the two feed gears - they must touch firmly.
Keep the wire completely straight as it enters the machine.
Ensure no gap between the two feed gears - they must touch firmly.
Step 3 - Test Blade Rotation
Manually spin the blade with your fingers to check it turns freely.
If it does not rotate, loosen and adjust the two screws on both sides of the blade until it moves smoothly.
Manually spin the blade with your fingers to check it turns freely.
If it does not rotate, loosen and adjust the two screws on both sides of the blade until it moves smoothly.
Step 4 - Correct Feeding Direction (Very Important)
The inlet plate must stay in the lower position at all times.
The wire needs to climb upward (like going uphill) into the machine.
Keep turning the hand crank while feeding - this assists the climbing motion.
The inlet plate must stay in the lower position at all times.
The wire needs to climb upward (like going uphill) into the machine.
Keep turning the hand crank while feeding - this assists the climbing motion.
Step 5 - Adjust Blade Pressure - DO NOT OVERTIGHTEN
Gradually increase the pressure while feeding the wire.
Stop and check: the blade should just cut through the outer insulation - not go deeper.
If you tighten too much in one go, the blade will dig in and the wire will stop moving. This will jam the machine and may damage both the wire and the blade.
Gradually increase the pressure while feeding the wire.
Stop and check: the blade should just cut through the outer insulation - not go deeper.
If you tighten too much in one go, the blade will dig in and the wire will stop moving. This will jam the machine and may damage both the wire and the blade.
Tip: Adjust a little, test a short piece, then fine-tune - this gives the best result.
What's in the Box:
1 x Wire Stripping Machine
1 x Wire Stripping Machine
